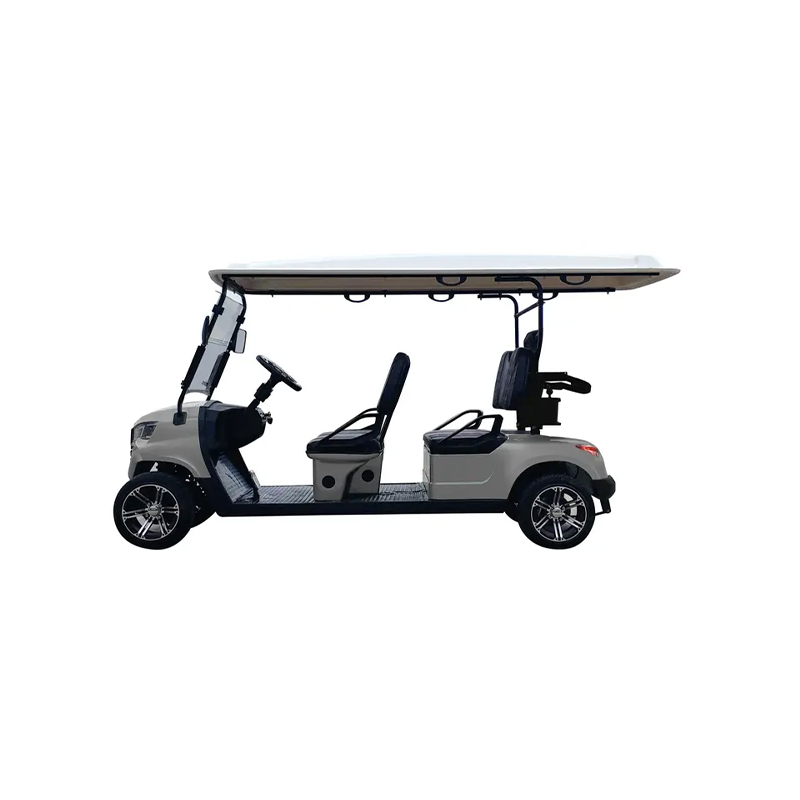

| Vehicle parameters |
Length*width*height(mm) |
3150*1150*1865 |
| Wheel base(mm) |
2450 |
| Front/rear wheel track(mm) |
985/1025 |
| Front/rear suspension(mm) |
245/459 |
| Min. Ground Clearance (full load) (mm) |
≥180 |
| rear cargo box inner size(mm) |
— |
| rear cargo box volume (m³) |
— |
| Height of rear box surface above ground(mm) |
— |
| Minimum turning radius (m) |
≤5m |
| Curb weight (kg) |
530 |
| Person capacity (person qty) |
4 |
| Rated load (kg) |
320 |
| Total mass (kg) |
850 |
| Front/rear load mass (kg) |
— |
| Maximum speed (km/h) |
32/40 |
| Range on a single charge (km) |
70-90 |
| Maximum gradeability (%) |
≤20% |
| Driving form |
Rear integral bridge |
| Power system |
Motor type |
AC MOTOR |
| Rated power(Kw) |
5KW/7.5KW |
| Maximum power(Kw) |
12 |
| Peak torque of the motor (N·m) |
65/120 |
| Voltage (V) |
48-72 |
| Battery capacity (KWh) (AH) |
5.376-11.04 |
| Battery type |
Lithium iron phosphate/lead acid |
| 80% rapid Recharge Time |
— |
| standard Recharge Time |
8 |
| Battery heating function |
— |
| Rear axle ratio |
12:1 |
| ECO energy-saving mode |
○ |
| Body structure |
Body models |
Unibody |
| Body structure |
Tube profile skeleton + stamping parts |
| Suspension structure |
Front suspension |
McPherson |
| Rear suspension |
trailing arm |
| Wheel |
Front/rear tyre model |
12-inch road tires or 14-inch off-road tires |
| Rim type |
14-inch x 7 alloy wheels |
| Turn |
Steering gear type |
rack and pinion |
| Steering wheel height adjustment function |
— |
| Ordinary steering wheel |
● |
| Power-assisted steering |
○ |
| Steering string collapsible type |
● |
| Brake |
Front/rear brake type |
disc brake |
| Parking brake type |
EBRAKE/55N.m |
| ABS |
○ |
| Safety equipment |
Driver's side airbag |
— |
| Passenger Airbag |
— |
| Abnormal tire pressure alarm |
— |
| low speed beep |
— |
| Front seat belt height adjustable |
— |
| front row two-point seat belt |
● |
| Front row three-point seat belt |
○ |
| Driver's seat belt not fastened |
— |
| Passenger seat belt is not fastened |
— |
| Interior central lock |
|
| Remote control door lock |
○ |
| Remote key |
○ |
| Keyless entry |
|
| One-button start |
○ |
| Door not closed reminder |
— |
| OTA online upgrade |
— |
| Basic configuration |
Wireless charging |
○ |
| Sound Dominator |
○ |
| Front basket |
○ |
| Welcome step |
○ |
| Manual adjustment of exterior mirrors |
● |
| Electric adjustment of exterior mirrors |
— |
| Manual foldable exterior mirrors |
● |
| Wiper |
Bone |
| Passenger safety handle |
● |
| Cargobox material |
— |

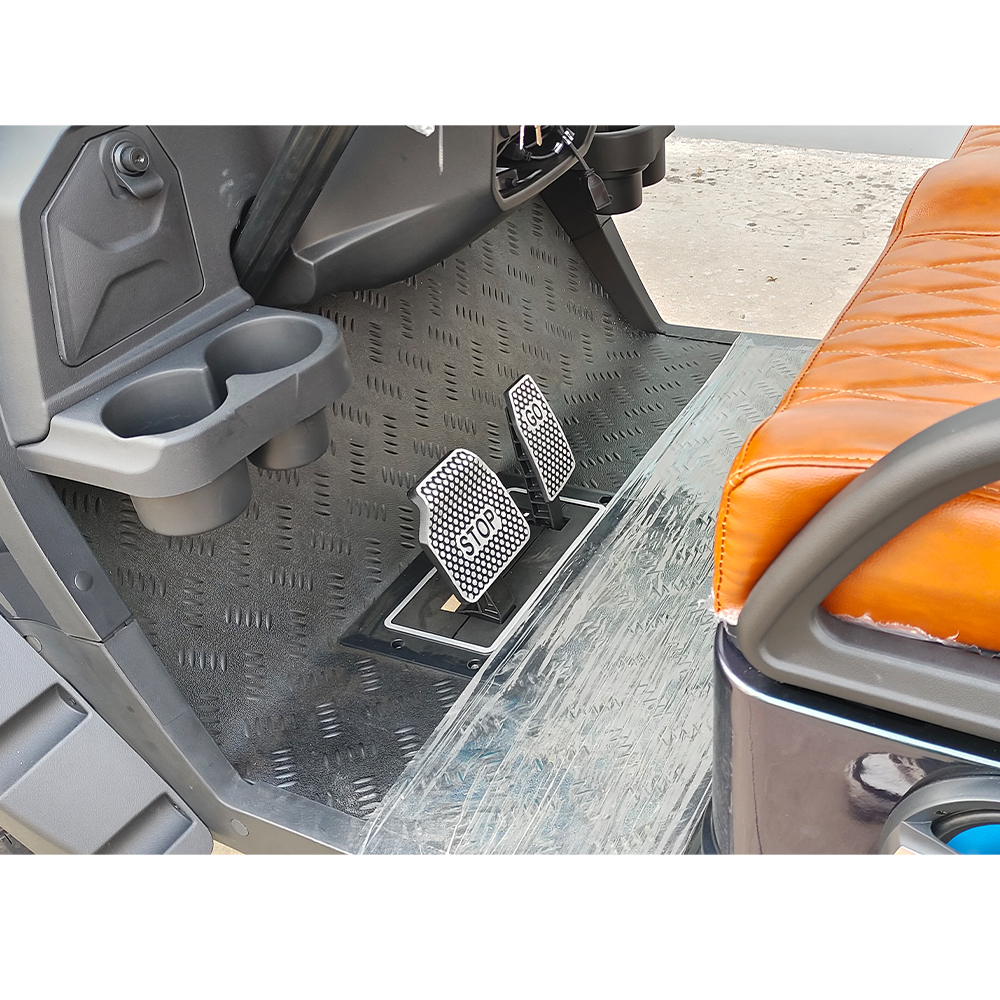

| Electronic accelerator pedal |
● |
| USB interface |
● |
| Manual anti-dazzle inside rearview mirror |
● |
| Main driver sun visor |
— |
| Passenger sun visor |
— |
| T-BOX |
— |
| Seat |
Driver's seat adjustment form |
Non-adjustable |
| Driver's seat headrest adjustment |
● |
| Passenger seat adjustment form |
Non-adjustable |
| Seat heating and ventilation |
— |
| Seat fabric |
PVC /Microfiber |
| Lamp |
Front combination lamp |
LED |
| Headlight height adjustment |
● |
| Daytime running lights |
● |
| Rear fog lamps |
— |
| Front fog lights |
— |
| Back retro reflector |
● |
| Reversing lights |
— |
| High mount brake light |
● |
| Outside rearview mirror turn signal |
● |
| Side turn signal |
— |
| Ambient lighting |
○ |
| Media |
Built-in driving recorder |
— |
| Multimedia Large-Screen Instrument Panel |
● |
| 6-inch speaker (standard) |
2 or 4 |
| Bluetooth handsfree |
● |
| Radio |
● |
| Antenna |
FM Built-in |
| reversing video |
● |
| Reversing radar |
— |
| Air conditioner |
— |
| Vehicle tools |
Manual |
● |
| Jack |
— |
| 19#Wrench |
|
| Warning tripod |
|
| Reflective vests |
— |
| Charging gun |
● |
